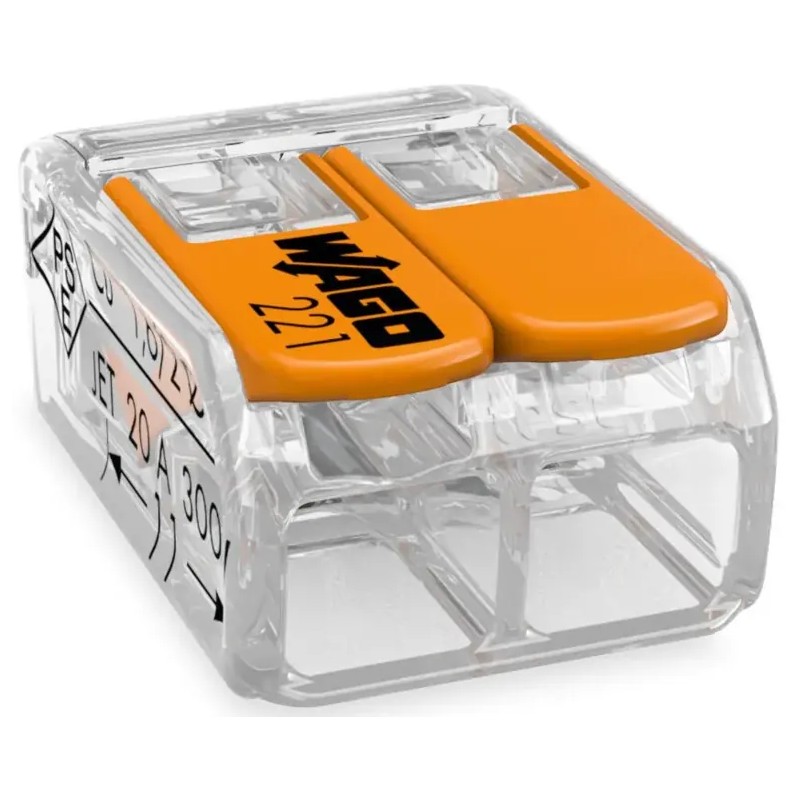

Wago 221-412 2 Way Compact Lever Connector

WAGO 221-412 2-Way Compact Lever Splicing Connector (32A)

Revolutionise your electrical wiring with the genuine WAGO 221 2-Way Connector. This compact lever-operated terminal block provides faster, safer, and tool-free splicing for all conductor types, making it the preferred choice for professional UK electricians.

Product Overview

The WAGO 221-412 is the ultimate connector for splicing cables in junction boxes, lighting circuits, and general installations. Up to 40% smaller than its predecessor (the 222 Series), its transparent body and slim design maximise space in tight enclosures.

The patented lever mechanism ensures a secure, gas-tight connection for both small and large conductors without needing fiddly screws or special tools. Simply strip the wire, lift the orange lever, insert the wire, and clamp the lever down. Connection made!

Rated for up to 32A / 450V, the 221 is certified for high-load UK domestic and commercial applications.

Key Features and Benefits

• Universal Conductor Type: Connects all types of wire: Solid (0.2 to 4mm²), Stranded (0.2 to 4mm²), and Fine-Stranded (0.14 to 4mm²).
• Tool-Free Installation: The simple, intuitive lever operation allows for fast, maintenance-free connections, saving significant time on every job.
• Compact Design: The small footprint and transparent housing are ideal for fitting into crowded junction boxes (e.g., Wagobox) while allowing for visual inspection of the strip length and conductor insertion.
• High UK Rating: Rated to 32A and 450V (EN 60664), suitable for connecting powerful appliances, lighting, and ring main circuits.
• Integrated Test Ports: Features two easily accessible test ports for all standard test probes, allowing for voltage testing without disconnecting the wires.
• Reusable: The connector can be opened and reused safely for circuit alterations and testing.

Technical Specifications

• Model: 221-412
• Number of Ways: 2-Way (2 Conductor)
• Max Current Rating (UK/EU): 32A
• Max Voltage Rating: 450V
• Conductor Range: 0.14 to 4mm² (Fine-Stranded) / 0.2 to 4mm² (Solid/Stranded)
• Strip Length Required: 11mm
• Operating Temperature (Max): 85°C
