26 series Female coupling with female thread

  • New
HP endstop with female 1/4" thread
  • HP endstop with female 1/4" thread
£6.00
(ex. VAT) Delivered within 2-3 days
Thread
Code: 26KAIW14
Quantity
In Stock

Price match

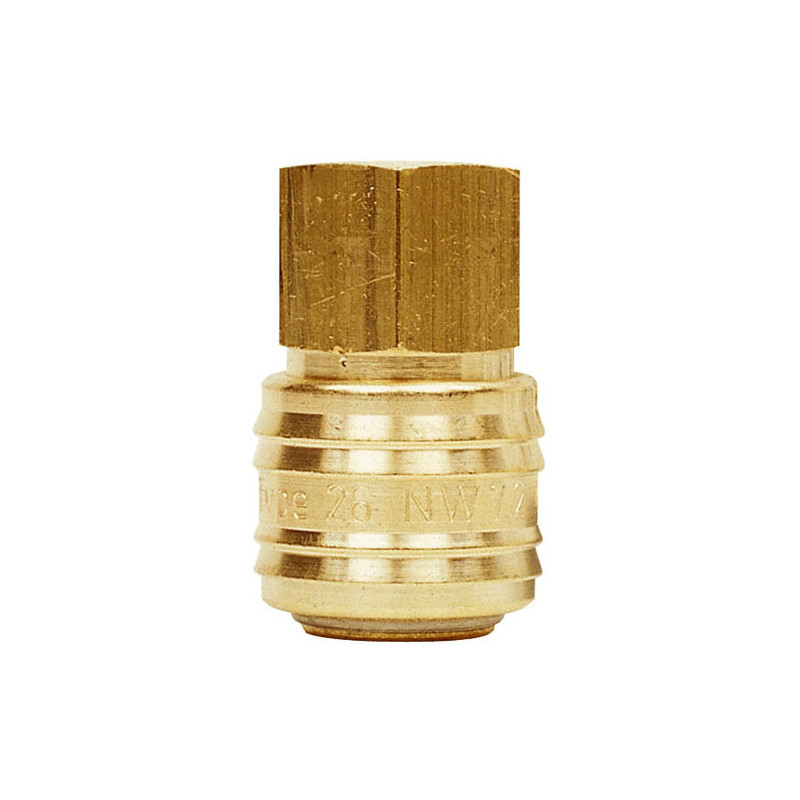

26 Series Female Quick-Release Coupling – 1/4" or 1/2" Female BSP Thread

Create a professional, modular connection with the 26 Series Female Threaded Coupling. Featuring a standard Euro-profile quick-release socket and a female BSP threaded inlet, this coupling is designed for direct mounting onto pumps, reels, and manifolds.

Heavy-Duty Euro-Profile Performance

The Series 26 is the most popular quick-release system in the UK and Europe, known for its high flow capacity and robust "one-handed" operation. This specific model features a female internal thread, allowing it to be used as a fixed port on your equipment. It is fully interchangeable with Rectus 25/26, CEJN 320, and other common Euro-profile plugs.

Constructed from high-grade brass with a hard-wearing finish, these couplings are built to survive the high-pressure environment of water-fed pole (WFP) systems and industrial air lines. The internal NBR seals provide a reliable, leak-free performance even under constant use and varying weather conditions.

Key Features & Benefits

  • Universal Compatibility: Works seamlessly with all Series 26 (Euro Profile) male plugs, including Rectus.
  • Threaded Versatility: Available in 1/4" and 1/2" BSP female threads to fit standard plumbing and pneumatic fittings.
  • High Flow Rate: Engineered with a 7.2mm nominal diameter to ensure minimal pressure loss and maximum water or air delivery.
  • Single-Handed Connection: Simple "push-to-connect" mechanism allows for fast, efficient tool or hose changes.
  • Corrosion Resistant: Manufactured from high-quality brass for longevity in wet or humid environments.
  • Industrial Rated: Suitable for both high-pressure water systems and pneumatic air lines up to 35 bar (500 PSI).

Thread Size Selection Guide

Thread Size Common Application
1/4" BSP Female The industry standard for small manifold outlets.
1/2" BSP Female Ideal for larger hose reel inlets, mains water connections, and high-volume manifolds.

Technical Specifications

  • Series: 26 (Euro Profile / 7.2mm)
  • Connection: Female Socket to Female BSP Thread
  • Material: Nickel-Plated Brass
  • Pressure Rating: 0 - 35 Bar (500 PSI)
  • Temperature Range: -20°C to +100°C
  • Seal Material: Nitrile (NBR)
26KAIW14

Data sheet

Thread
1/2"
1/4"
Type
26 series
Material
Brass

Specific References

mpn
026DG13
