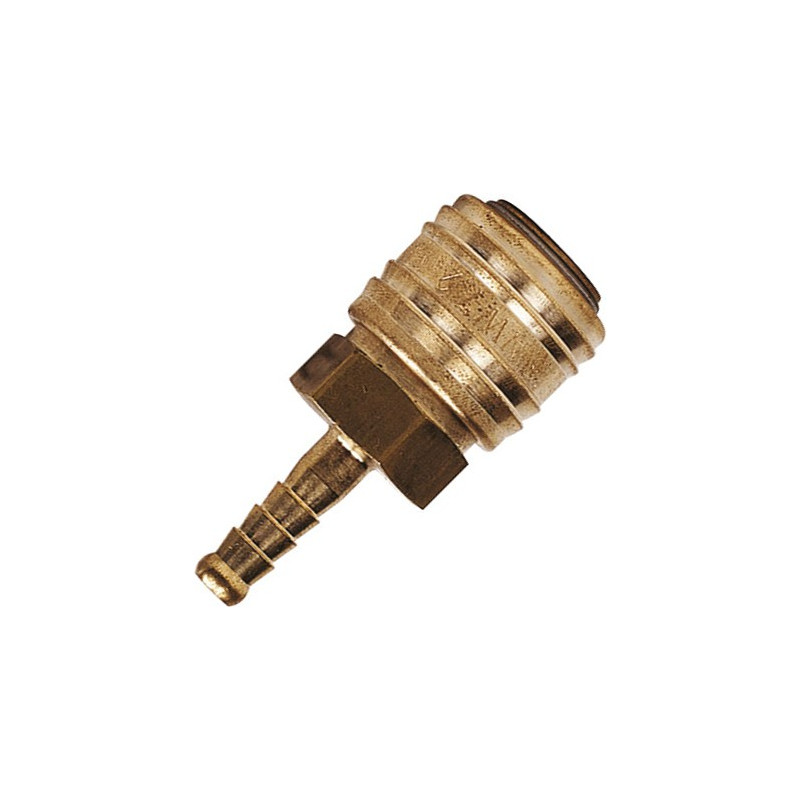

26 series Female coupling with Hosetail

26 Series Female Coupling with Hosetail – Professional Euro-Profile Quick Release

Ensure a secure, leak-free connection with the 26 Series Female Coupling. This "Euro-Standard" quick-release socket is designed for high-performance water and air delivery, featuring a barbed hosetail for direct integration into your hose lines.

The Industry Standard for WFP & Pneumatics

The Series 26 (interchangeable with Rectus 25/26, CEJN 320, and many others) is a single-shut-off coupling renowned for its high flow capacity and durability. This female body (socket) is equipped with a barbed hosetail, allowing you to secure it directly into various hose diameters using a Jubilee clip or O-clip.

Whether you are setting up a water-fed pole (WFP) window cleaning system, a workshop air line, or an industrial fluid transfer setup, these couplings provide a "one-handed" operation. Simply push the compatible male plug into the socket to connect, and pull back the collar to release. Its nickel-plated brass construction ensures excellent corrosion resistance and a long service life.

Key Features & Benefits

• Universal Euro Profile: Fully interchangeable with Rectus 25/26.
• High Flow Rate: Minimal pressure drop ensures maximum efficiency for water-fed poles and pneumatic tools.
• One-Handed Operation: Quick and easy connection and disconnection for faster setup on-site.
• Barbed Hosetail: Provides a secure, "bite-in" grip for 6 mm, 8 mm, and 13 mm internal diameter (ID) hoses.
• Durable Construction: Made from high-quality brass with NBR seals for chemical and weather resistance.
• Versatile Use: Ideal for window cleaning, automotive workshops, and general industrial maintenance.

Size Compatibility Guide

Select the correct hosetail size based on the Internal Diameter (ID) of your hose:

Technical Specifications

• Series: 26 (Euro Standard)
• Connection Type: Female Socket to Hosetail (Barb)
• Nominal Diameter: $7.2\text{mm}$
• Material: Nickel-Plated Brass
• Seal Material: NBR (Nitrile Rubber)
• Working Pressure: 0 to 35 Bar (0 to 500 PSI)
